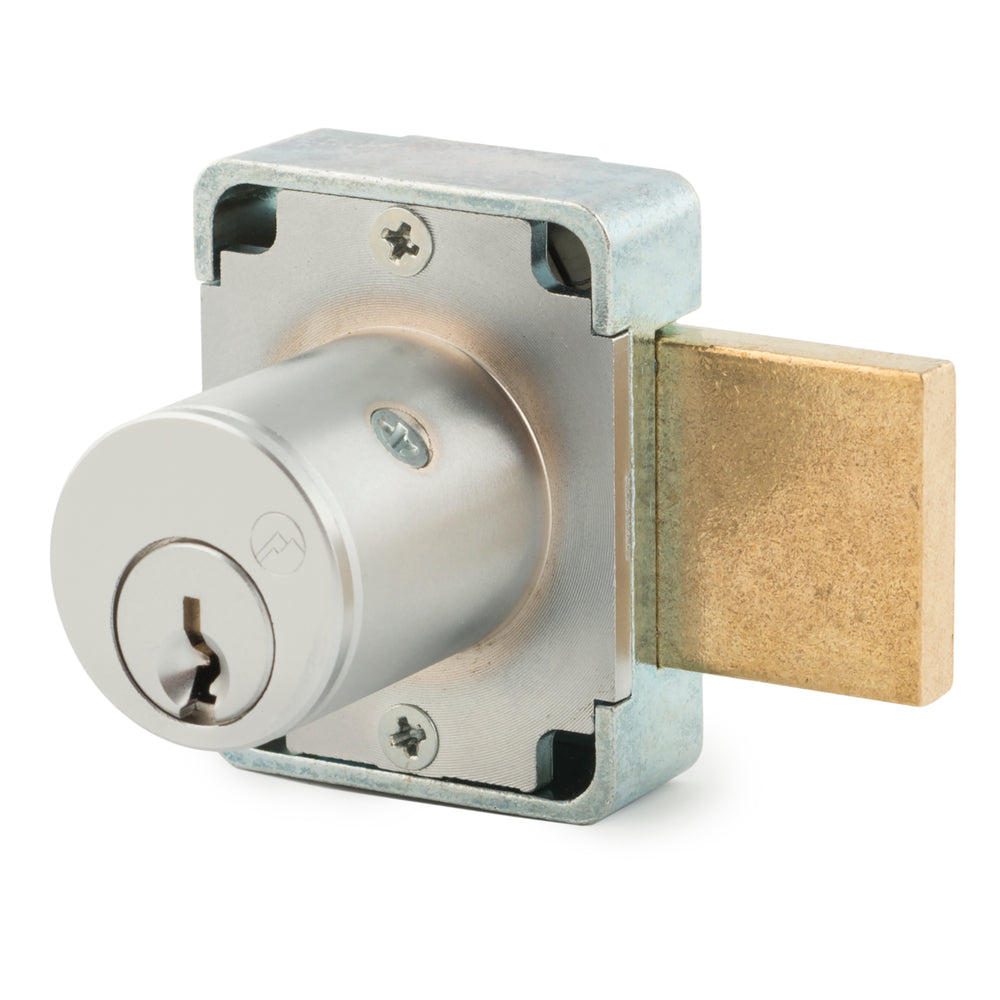

Olympus Lock 100DR Pin Tumbler Cabinet Door Deadbolt Lock
10B Finish
Olympus Lock 100DR Pin Tumbler Cabinet Door Deadbolt Lock
Olympus Lock 100DR Pin Tumbler Cabinet Door Deadbolt Lock

Olympus Lock 100DR Pin Tumbler Cabinet Door Deadbolt Lock

Olympus Lock 100DR Pin Tumbler Cabinet Door Deadbolt Lock

$36.48


FREE SHIPPING
SKU OL-100DR

The Olympus Lock 100DR is a pin tumbler cabinet door deadbolt lock which conforms to ANSI/BHMA A156.11 Grade 1, E07121 standards. Offered as a value priced alternative to commercial keyway or interchangeable core locks. The N series locks use the National D4291 (4 pin) or D4292 (5 pin) key system.

 $100 minimum order on all lock products

Looking for a Specific Olympus Lock Product Code? Call (800) 413-9715 or email us for Pricing

Olympus 100DR Deadbolt Lock

  • Model: 100DR (multiple finishes and keying options available)
  • Series: N (National Keyway)
  • Lock Type: Door deadbolt lock
  • Need a Written Quote? Request Online >
  • Volume Pricing on Orders $5,000+
  • Expedited Shipping Available
  • Questions? Call (800) 413-9715

Why Buy Locks from Redmond Supply?

  • We’re Local
  • We work closely with the manufacturer Olympus Lock. Our offices are located less than 10 miles from their Lynnwood, WA headquarters. This allows for us to have direct access to real time order updates and rapid manufacturer product support for our customers. Our strong relationship with Olympus Lock coupled with our customer focused approach helps to ensure that your order is pulled correctly and shipped on time.
  • We’re Competitive
  • We strive to keep our prices as competitive as possible. See a lower price somewhere else? We will do our very best to match and in most cases beat any advertised or quoted price.

  • We’re Fast
  • We take order fulfillment seriously. We are quick to process your order and in most cases ship same day. Have an order related question? We’re just a phone call away.

General Features

  • N Series - National Keyway
  • Cabinet deadbolt door lock
  • Easily rekeyable via set screw cylinder release mechanism
  • Solid brass pin tumbler cylinder drilled for 5 pins
  • For MRI locks see 100M.
  • For weather resistant locks see 100B.
  • ANSI/BHMA Grade 1 (E07121)
  • Barrel lengths: 15/16" or 1-3/8"
  • Barrel diameter: 7/8"
  • Standard function: locks are non-handed with key removable in the locked and unlocked position.
  • Optional key-retaining* function: Specify 100KR for right-hand or 100KL for left hand. NOTE: Specify right-hand or left-hand for key-retaining function only.
  • Optional extended bolt - specify -LB option
  • 26D, US4 or 10B finish
  • US Patent Nos: 4,899,563; 4,920,774
  • *Key-retaining = key removable in locked position only.
  • WARNING (Proposition 65)

Finishes Available

US26D
(Satin Chrome Plated)

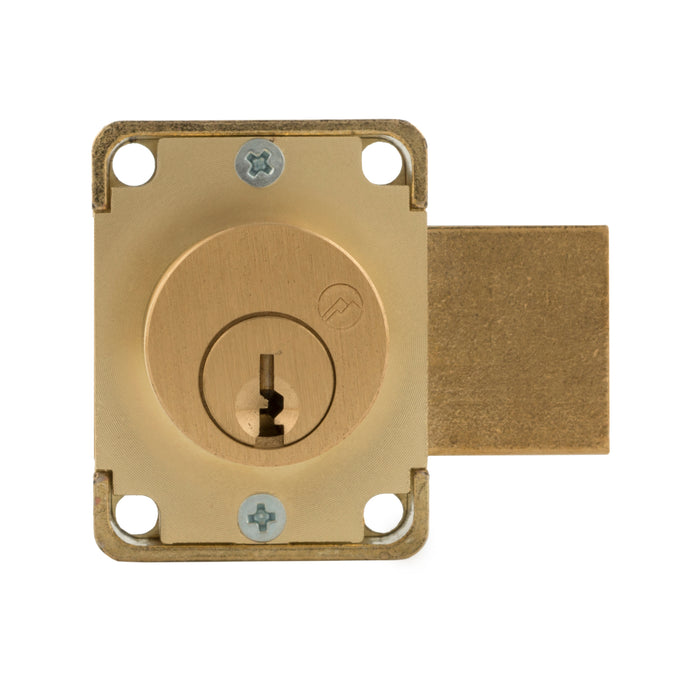

US4
(Satin Brass)

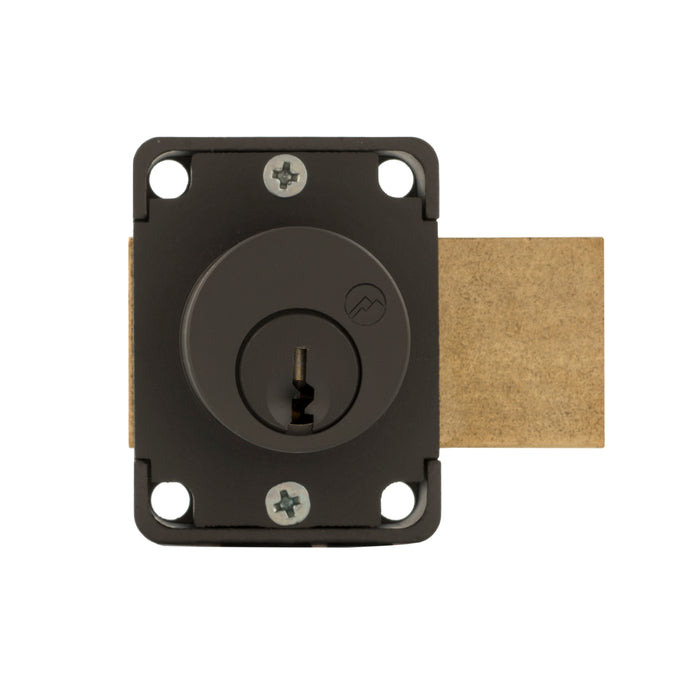

US10B
(Oil Rubbed Bronze)

Testing

  • ANSI/BHMA A156.11 Grade 1 (E07121)

Keying

  • N Series: National keyway
  • National D4291(4-pin) or D4292 (5-pin) keyway
  • KD/KA - 4 pin standard
  • KA# 101, 103, 107, 915
  • 4-pin keyblank = KBN-4-NP (equivalent to NA14, 1069L)
  • 5-pin keyblank = KBN-5-NP (equivalent to NA12, 1069LA)
